X458 Trolley with Plastic Wheel | 4" Overhead Trolley A Type
X458 Trolley with Plastic Wheel | 4" Overhead Trolley A Type
Detail Information
X458 Trolley with Plastic Wheel | 4" Overhead Trolley A Type Description：
Camel X458 Trolley is availabe in either full ball complement or retainer configurations.
The full ball complement trolley wheel contains the maximum number of recision ball bearings and is designed for heavey duty and/or high heat applications.
The retainer type trolley wheel has each precision ball bearing separated and equally spaced around the periphery of the bearing race by a two piece steel retainer cage. The retainer type wheel is designed primarily for transportation and parts delivery systems. It is generally not suited for heavy duty or high heat applications.

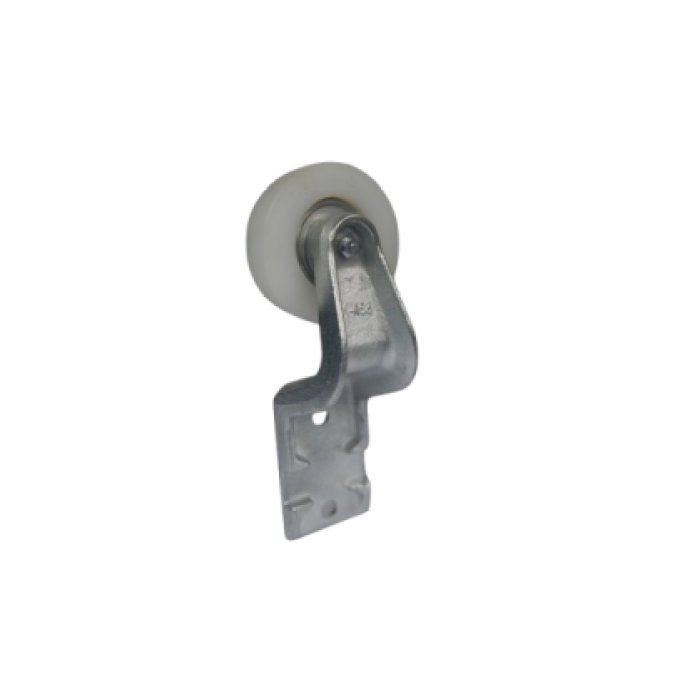

Item Picture:
X458 Trolley with Plastic Wheel | 4" Overhead Trolley A Type Description：
X458 Trolley with Plastic Wheel | 4" Overhead Trolley A Type Description：
Trolley Size | Matched Chain | Trolley Dimensions | Trolley Capacity | Type | |||||||
A | B | C | D | E | F | G | H | ||||
4" | 458、100 | 5.35" | 0.71" | 5" | 3.15" | 3.19" | 2.13" | 0.39" | 7.187" | 150kg | C |
136mm | 18mm | 127mm | 80mm | 81mm | 54mm | 10mm | 182.6mm | ||||
