"H" Attachment for Overhead Trolley
"H" Attachment for Overhead Trolley"H" Attachment for Overhead Trolley"H" Attachment for Overhead Trolley

"H" Attachment for Overhead Trolley

CategoriesOverhead Conveyor Trolley Attachments
BrandCamelConvey Conveyor Chain Manufacturer
ModelH Attachment
Material40Cr
Heat TreatmentThrough Hardening
Surface TreatmentNatural
SampleAvailable
Terms of PaymentL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
Download
Update TimeNov 15,2024
Detail Information

"H" Attachment for Overhead Trolley Description:

With their universal fit and easy installation, Camel Convey attachments offer an ideal solution for companies looking to optimize their trolley systems with minimal effort and maximum benefit.
H attachment for I-Beam conveyor trolley has 3 types for forged rivetless chain.

Item Picture:

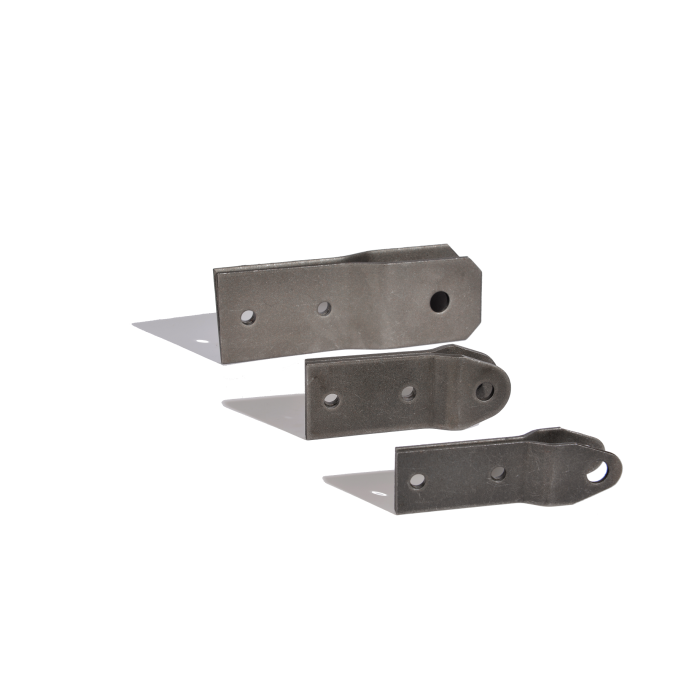

H attachment for X348 X458 X678 overhead trolley
H attachment for X348 X458 X678 overhead trolley

"H" Attachment for Overhead Trolley Schematic Diagram:

B attachment

"H" Attachment for Overhead Trolley Specification:

Trolley
Size
Matched
Chain
Dimensions
A
B
C
L
d1
d2
W
T
6"
678
2.99"
2.76"
2.5"
7.01"
0.53"
0.81"
1.31"
0.50"
76mm
70mm
63.5mm
178mm
13.5mm
20.6mm
33.3mm
12.7mm
4"
458
2.13"
2.13"
2.19"
5.75"
0.41"
0.53"
1.125"
0.39"
54mm
54mm
55.6mm
146mm
10.5mm
13.5mm
28.6mm
10mm
3"
348
1.50"
1.88"
2.25"
5.24"
0.335"
0.53"
0.81"
0.24"
38.1mm
47.8mm
57mm
133mm
8.5mm
13.5mm
20.6mm
6mm
Customer dimensions are also available.

"H" Attachment for Overhead Trolley Overview:
