"B" Attachment for Overhead Trolley
"B" Attachment for Overhead Trolley
Detail Information
"B" Attachment for Overhead Trolley Description：
With their universal fit and easy installation, Camel Convey attachments offer an ideal solution for companies looking to optimize their trolley systems with minimal effort and maximum benefit.

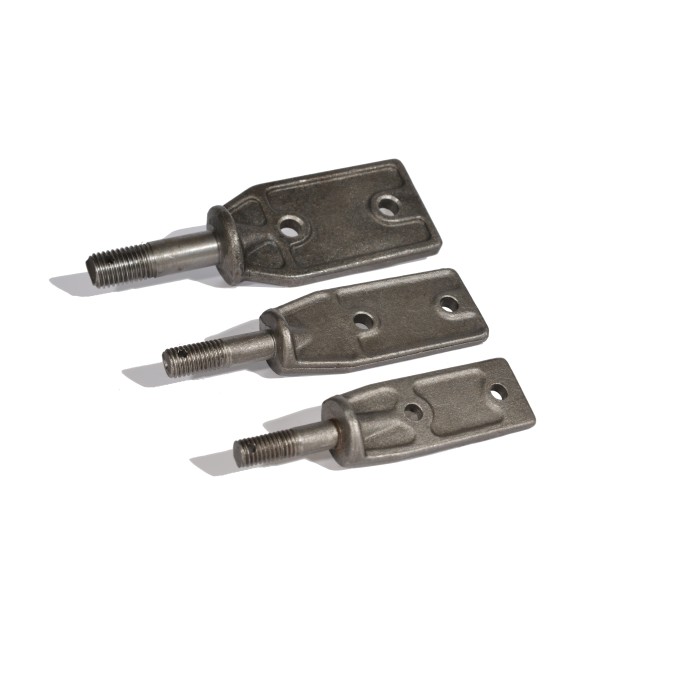

B attachment for I-Beam conveyor trolley has 3 types for forged rivetless chain.Item Picture:
"B" Attachment for Overhead Trolley Schematic Diagram：
"B" Attachment for Overhead Trolley Specification：
Trolley Size | Matched Chain | Dimensions | |||||||||
A | B | C | D | E | L | M | d1 | d2 | T | ||
6" | 678 | 2.99" | 2.76" | 2" | 2" | 2.9" | 8.74" | 7\8-9 | 0.53" | 0.22" | 0.50" |
76mm | 70mm | 50.8mm | 50.8mm | 73.5mm | 222mm | / | 13.5mm | 5.5mm | 12.7mm | ||
4" | 458 | 2" | 2.13" | 2.12" | 1.37" | 2.13" | 7" | 5\8-11 | 0.41" | 0.19" | 0.37" |
50.8mm | 54mm | 53.9mm | 34.9mm | 54mm | 177.8mm | / | 10.5mm | 4.8mm | 9.5mm | ||
3" | 348 | 1.50" | 1.88" | 1.56" | 1.25" | 1.80" | 5.75" | 1\2-13 | 0.335" | 0.14" | 0.25" |
38.1mm | 47.8mm | 39.7mm | 31.8mm | 45.8mm | 146mm | / | 8.5mm | 3.6mm | 6.35mm | ||
