Forged Rivetless Chain Pusher Dog | Power and Free Conveyor Components

Forged Rivetless Chain Pusher Dog | Power and Free Conveyor Components
Forged Rivetless Chain Pusher Dog | Power and Free Conveyor ComponentsForged Rivetless Chain Pusher Dog | Power and Free Conveyor ComponentsForged Rivetless Chain Pusher Dog | Power and Free Conveyor Components

Forged Rivetless Chain Pusher Dog | Power and Free Conveyor Components

CategoriesPower and Free Conveyor Components
BrandCamelConvey Conveyor Chain Manufacturer
ModelPusher Dog
MaterialAlloy Steel
SampleAvailable
Terms of PaymentL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
Download
Update TimeNov 21,2024
Detail Information

Forged Rivetless Chain Pusher Dog | Power and Free Conveyor Components Description:

Pusher dogs work with power and free conveyor trolleys and systems. These conveyors provide direct, positive control of each load in the system making them ideally suited to industrial applications that demand maximum versatility, productivity, and efficiency. This high level of control is due to the dual track configuration of power free systems. The main (or “power”) track is a chain-driven conveyor that moves carriers through the system.

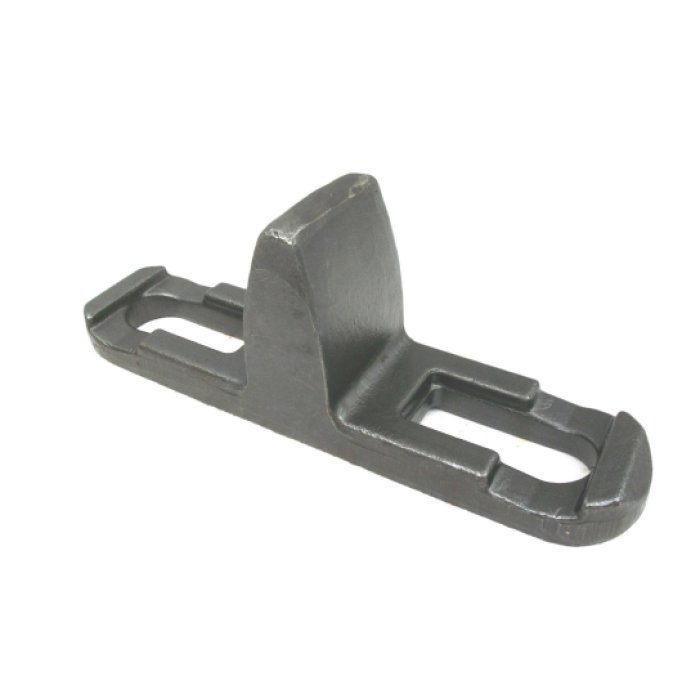

Item Picture:

push dog
push dog

Forged Rivetless Chain Pusher Dog | Power and Free Conveyor Components Schematic Diagram:

push dog

Forged Rivetless Chain Pusher Dog | Power and Free Conveyor Components Specification:

Chain No.
Nominal Pitch
Actual Pitch
Pin Diameter
Pin Length
Other Dimensions
P
D
L
A
B
C
678
6''
6.03''
0.87''
3.03''
2''
1.18''
3.23''
152.4mm
153.2mm
22mm
77mm
50.8mm
30mm
82mm
160
6.03''
6.3''
0.87''
3.03''
2''
1.18''
3.11''
160mm
160mm
22mm
77mm
50.8mm
30mm
79mm
