X348 Drop Forged Rivetless Chain

Categories	Drop Forged Rivetless Chain
Brand	CamelConvey Conveyor Chain Manufacturer
Model	X348
Material	SAE5140 /SAE4140/SAE8642
Heat Treatment	Through Hardening
Surface Treatment	Zinc Plating/Hot-Dip Galvanizing/Other Surface Ant
Sample	Available
Terms of Payment	L/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
Download
Update Time	Nov 13,2024

Contact Now

Favorites

Detail Information

X348 Drop Forged Rivetless Chain Description：

Rivetless chain is available in the following sizes: X698, X678, X 458 and X348. The larger the chain, the heavier the load it can sustain. Heavy industrial chain applications will likely call for X678 chain, which rides in 6-inch track and can have an ultimate tensile strength in excess of 125,000 pounds. Light overhead conveyor facility may utilize X348 chain, which goes into 4-inch track and typically has an ultimate tensile strength of less than 40,000 pounds.

There are three main components of rivetless drop forged chain: cast steel inner and outer links and heat-treated steel pins. This high strength chain can be found in power and free overhead conveyor, car washes, automotive manufacturing, vertical i beam trolley systems, as well as general and overhead conveying systems.

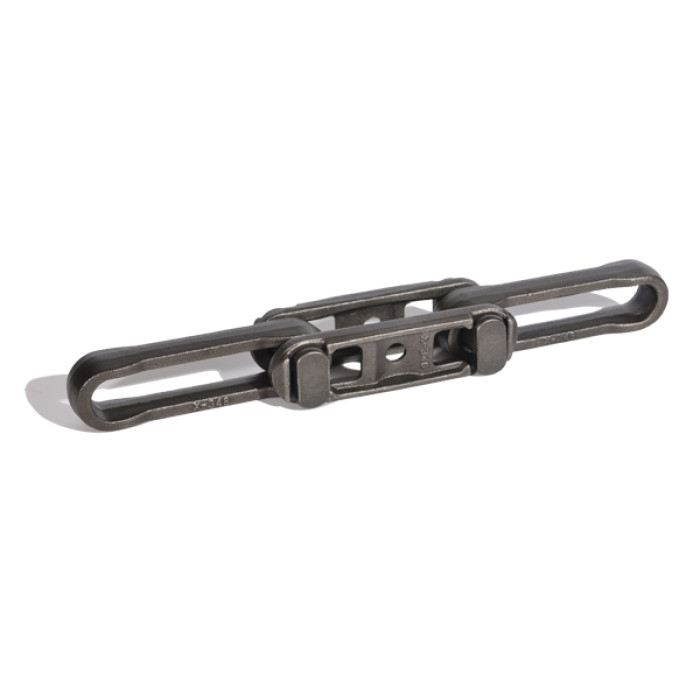

Item Picture:

X348 Drop Forged Rivetless Chain Schematic Diagram：

X-Type

Regular-Type

S-Type

X348 Drop Forged Rivetless Chain Specification:

Chain NO.	Normal Pitch	Actual Pitch	Pin Diameter	Pin Length	Other Dimensions				Ultimate Tensile Strength


	P		D	L	A	B	C	E	Q
X348	3"	3.02"	0.50”	1.81"	1.1"	0.52"	0.74”	0.57"	24750lbs
X348	76.20mm	76.6mm	12.7mm	46mm	28mm	13.2mm	18.8mm	14.4mm	110KN
