900 Class Sugar Mill Pintle Chain Description：
Pintle chains are amongst one of the earliest forms of conveyor chains to have been used, There are several different classes of pintle chain ranging from 400-Class to 900-Class, each class has specific features intended for specific industries and applications. 900-class pintle chains are primarily used in the palm oil industry and are engineered and manufactured to withstand abrasive and demanding applications.

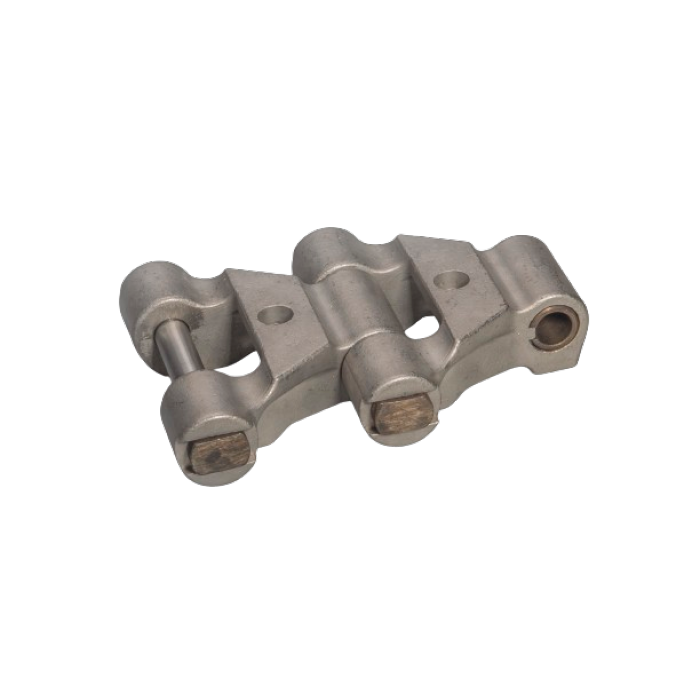

Item Picture:
900 Class Sugar Mill Pintle Chain Schematic Diagram：
900 Class Sugar Mill Pintle Chain Specification:
Chain NO. | Pitch | Dimensions | |||||||
P | A | B | C | D1 | d | E | F | T | |
907-E51 | 3.17" | 1.65" | 0.94" | 1.50" | 0.63” | 0.63" | 2.24" | 5.35" | 0.38" |
80.5mm | 42mm | 23.8mm | 38.1mm | 16mm | 16mm | 57mm | 136mm | 9.65mm | |
Customer dimensions are also available.
