Forged Loop Link Chain | Sugar Mill Chain
Detail Information

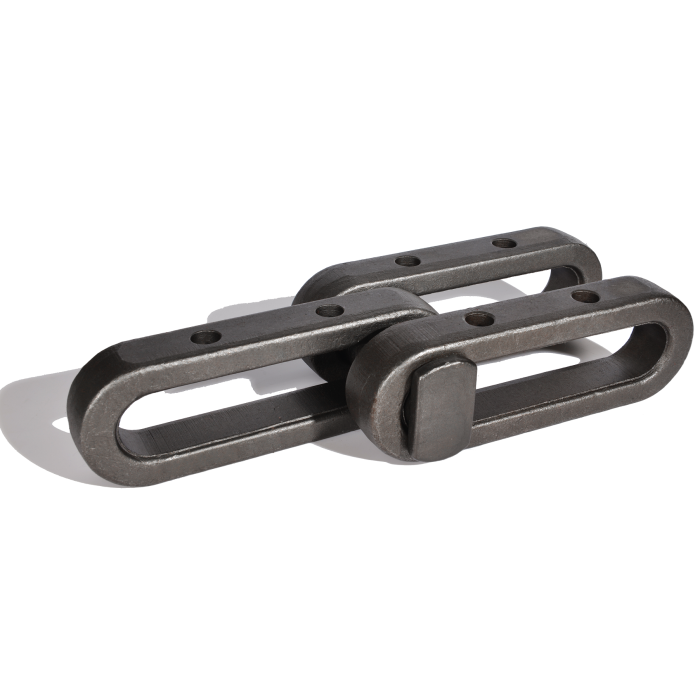

Forged Loop Link Chain | Sugar Mill Chain Description：
Forged Loop Link Chain is used extensively for flight conveyors. Its design permits both horizontal and vertical operation over irregular routes, making it particularly adaptable for trolley conveyor service.
Forged Loop Link Chain | Sugar Mill Chain Schematic Diagram：
Forged Loop Link Chain | Sugar Mill Chain Chain Specification:
Chain Number | Pitch | Other Dimensions | Ultimate Tensile Strength | ||||||
P | D | F | H | L | T1 | T2 | d | Q | |
P152.4 | 6" | 1.18" | 3.66" | 2.36" | 2.52" | 1.77" | 1.77" | 0.51" | 76500 lbs |
152.4mm | 30mm | 93mm | 60mm | 64mm | 45mm | 45mm | 13mm | 340 KN | |
B5291 | 6" | 1.54" | 3.54" | 3.15" | 3" | 1.57" | 1.97" | 0.67" | 141700 lbs |
152.4mm | 39mm | 90mm | 80mm | 76.2mm | 40mm | 50mm | 17mm | 630 KN | |
P228.6 | 9" | 1.54" | 3.54" | 3.15" | 3.74" | 1.57" | 1.97" | 0.67" | 160600 lbs |
228.6mm | 39mm | 90mm | 80mm | 95mm | 40mm | 50mm | 17mm | 714 KN | |
Customer dimensions are also available.
