160 Metric Forged Chain | Material Handling Line
160 Metric Forged Chain | Material Handling Line
Detail Information
160 Metric Forged Chain | Material Handling Line Description：
The 160 Dropped Forged Chain is commonly used in conveyor systems, material handling equipment, and other heavy-duty applications. The chain is capable of withstanding high loads and is designed to operate in harsh environments.

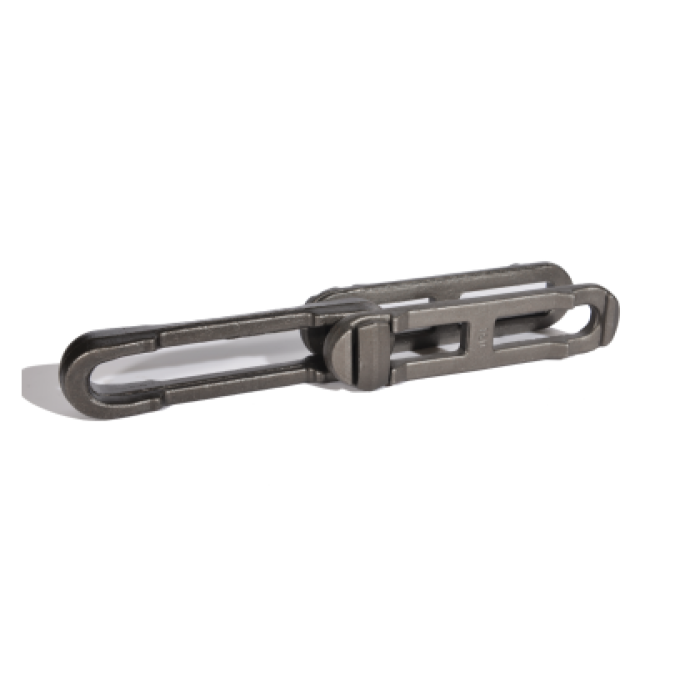

160 Metric Forged Chain | Material Handling Line Pictures：
160 Metric Forged Chain | Material Handling Line Schematic Diagram：
160 Metric Forged Chain | Material Handling Line Specification:
Chain No. | Pitch | Pin Diameter | Pin Length | Other Dimensions | Ultimate Tensile Strength | Type | |||
P | D | L | A | B | C | E | Q | ||
160 | 6.3" | 0.874” | 3.03" | 2" | 0.82" | 1.28” | 1" | 85500 lbs | Regular |
160mm | 15.88mm | 77mm | 50.8mm | 20.8mm | 32.5mm | 25.4mm | 380 KN | ||
