XT80 Metric Chain | Drop Forged Rivetless Chain
XT80 Metric Chain | Drop Forged Rivetless Chain
Detail Information
XT80 Metric Chain | Drop Forged Rivetless Chain Description：
The XT80 metric forged chain is a reliable and versatile chain designed for efficient material handling in a wide range of industrial applications. Its standard size, durability, and ease of maintenance make it a go-to choice for many conveyor systems. is a reliable and versatile chain designed for efficient material handling in a wide range of industrial applications. Its standard size, durability, and ease of maintenance make it a go-to choice for many conveyor systems.

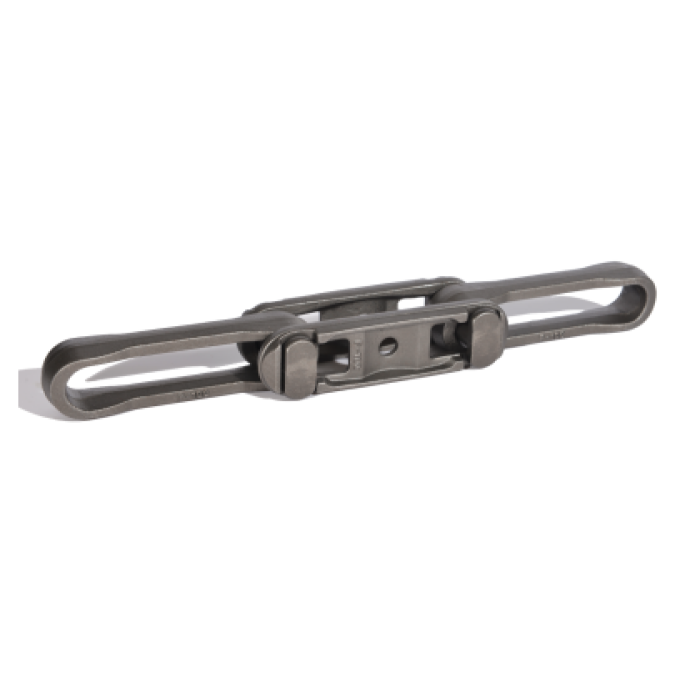

Item Picture:
XT80 Metric Chain | Drop Forged Rivetless Chain Schematic Diagram：
XT80 Metric Chain | Drop Forged Rivetless Chain Specification:
Chain No. | Pitch | Pin Diameter | Pin Length | Other Dimensions | Ultimate Tensile Strength | Type | |||
P | D | L | A | B | C | E | Q | ||
XT80 | 3.15" | 0.51” | 1.89" | 1.14" | 0.47" | 0.79” | 0.57" | 24750 lbs | X |
80mm | 13mm | 48mm | 29mm | 12mm | 20mm | 14.5mm | 110 KN | ||
