X348 Forged Side Link Pusher Dog | Power and Free Conveyor Components Description:

CamelConvey pusher dog is one kinds of overhead coneyor parts, and we can provide X348 Side Link Pusher Dog, X458 Side Pusher Dog and X678 Side Link Pusher Dog. Pusher dogs engage retractable dogs on free line trolleys to push the trolley through the power portions of Power & Free conveyors. Pusher dogs are assembled to Rivetless chain in place of lower side links at specified intervals between power trolleys.Pusher Dog is composed of a connecting bar with moveable flipper lugs and two attachment pendants. Connecting bar is attached to the conveyor chain with the pendants, nuts, and cotter pins. Furnished in a zinc plate finish.
Pusher dogs are hardened and tempered steel forgings. Pusher dogs are usually furnished assembled to the overhead conveyor parts.

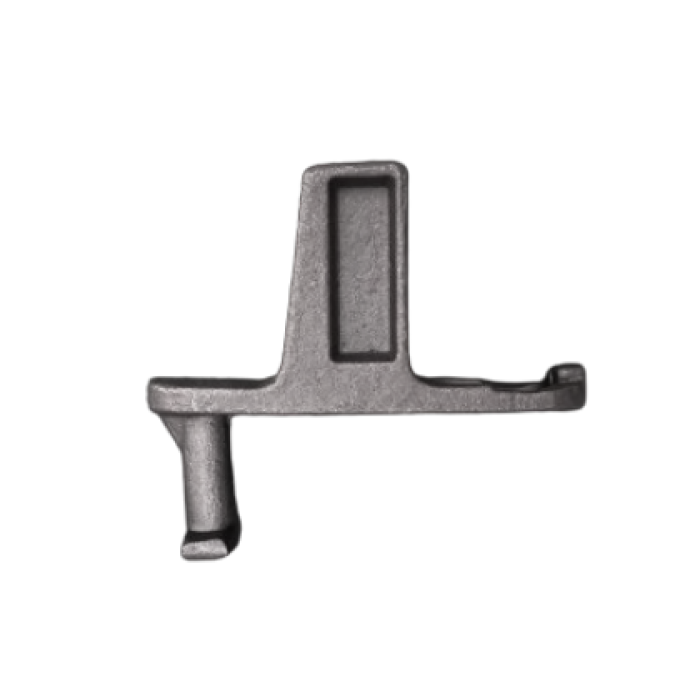

X348 Forged Side Link Pusher Dog | Power and Free Conveyor Components Pictures:

push dog
push dog

X348 Forged Side Link Pusher Dog | Power and Free Conveyor Components Schematic Diagram:

push dog

X348 Forged Side Link Pusher Dog | Power and Free Conveyor Components Specification:

Chain No.
Nominal Pitch
Actual Pitch
Pin Diameter
Pin Length
Other Dimensions
P
D
L
A
B
C
E
X348
3''
3.02''
0.5''
1.81''
1.1''
1''
2.36''
1.54''
76.2mm
76.6mm
12.7mm
46mm
28mm
25.4mm
60mm
39mm
