X458 Side Link Pusher Dog | Power and Free Conveyor Components

X458 Side Link Pusher Dog | Power and Free Conveyor Components
X458 Side Link Pusher Dog | Power and Free Conveyor ComponentsX458 Side Link Pusher Dog | Power and Free Conveyor ComponentsX458 Side Link Pusher Dog | Power and Free Conveyor Components

X458 Side Link Pusher Dog | Power and Free Conveyor Components

CategoriesPower and Free Conveyor Components
BrandCamelConvey Conveyor Chain Manufacturer
ModelPusher Dog
MaterialAlloy Steel
Surface treatmentShot Peening
SampleAvailable
Terms of PaymentL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
Download
Update TimeNov 21,2024
Detail Information

X458 Side Link Pusher Dog | Power and Free Conveyor Components Description:

Pusher dogs work with power and free conveyor trolleys and systems. These conveyors provide direct, positive control of each load in the system making them ideally suited to industrial applications that demand maximum versatility, productivity, and efficiency. This high level of control is due to the dual track configuration of power free systems. The main (or “power”) track is a chain-driven conveyor that moves carriers through the system.

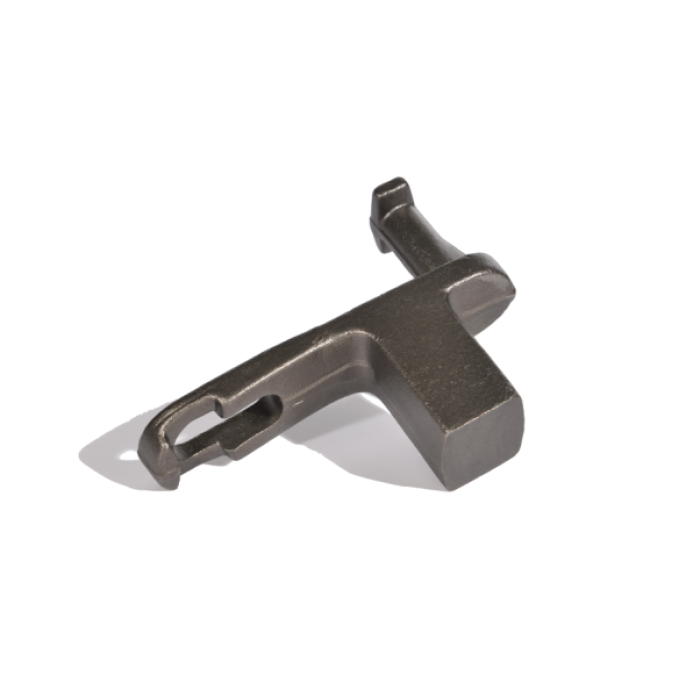

Item Picture:

push dog
push dog

X458 Side Link Pusher Dog | Power and Free Conveyor Components Schematic Diagram:

push dog

X458 Side Link Pusher Dog | Power and Free Conveyor Components Specification:

Chain No.
Nominal Pitch
Actual Pitch
Pin Diameter
Pin Length
Other Dimensions
P
D
L
A
B
C
E
X458
4''
4.03''
0.625''
2.24''
1.42''
1.24''
2.22''
1''
101.6mm
102.4mm
15.88mm
57mm
36mm
31.5mm
56.3mm
25.4mm
