X678 Side Link Pusher Dog | Wide Wing Power and Free

Categories	Power and Free Conveyor Components
Brand	CamelConvey Conveyor Chain Manufacturer
Model	X678 Side Link Pusher Dog
Material	Alloy Steel
Surface Treatment	Shot Peening
Sample	Available
Terms of Payment	L/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
Download
Update Time	Jan 18,2025

Contact Now

Favorites

Detail Information

X678 Side Link Pusher Dog | Wide Wing Power and Free Description：

CamelConvey pusher dog is one kinds of overhead conveyor parts, and we can provide X348 Side Link Pusher Dog, X458 Side Pusher Dog and X678 Side Link Pusher Dog. CamelConvey Pusher dogs work with power and free conveyor components and systems. CamelConvey offer high-quality steel construction, hardened for added durability. In addition, specially designed mounting pins eliminate the need for welded connections between the dog and wheel assembly. This minimizes maintenance time by allowing quick, easy replacement of the dog without breaking down the chain and removing the entire assembly.

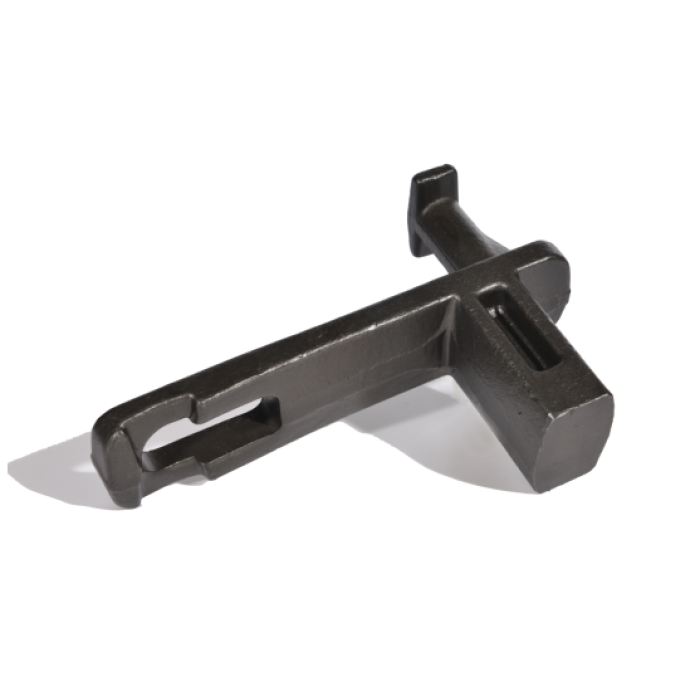

X678 Side Link Pusher Dog | Wide Wing Power and Free Pictures：

X678 Side Link Pusher Dog | Wide Wing Power and Free Schematic Diagram：

X678 Side Link Pusher Dog | Wide Wing Power and Free Specification:

Chain No.	Nominal Pitch	Actual Pitch	Pin Diameter	Pin Length	Other Dimensions
Chain No.	P		D	L	A	B	C
X678	6"	6.03''	0.87”	3.03"	2"	1.42"	2.52”
X678	152.4mm	153.2mm	22mm	77mm	50.8mm	36mm	64mm
X678	6''	6.03''	0.87''	3.03''	2''	1.38''	3.31''
X678	152.4mm	153.2mm	22mm	77mm	50.8mm	35mm	84mm

X678 Side Link Pusher Dog | Wide Wing Power and Free Overview:
