S228 Zinc Plated Forged Rivetless Chain | Light Duty Overhead Trolley System
S228 Zinc Plated Forged Rivetless Chain | Light Duty Overhead Trolley System
Detail Information
S228 Zinc Plated Forged Rivetless Chain | Light Duty Overhead Chain Description：
S228 Zinc Plated Forged Rivetless Chain is one kind of small and light overhead conveyor chains. It is easily assembled and disassembled by hand. The surface can be made zinc plated, which is used in the poultry applications.

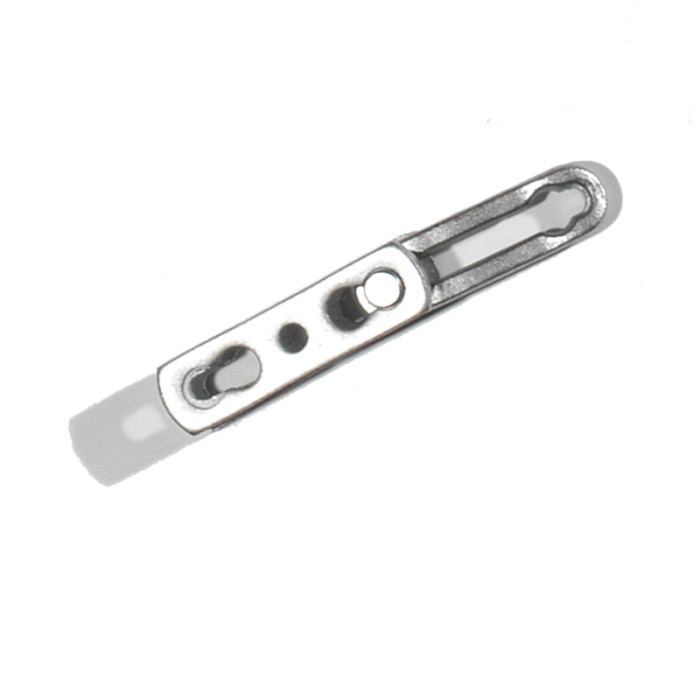

Item Picture:
S228 Zinc Plated Forged Rivetless Chain | Light Duty Overhead Chain Schematic Diagram：
S228 Zinc Plated Forged Rivetless Chain | Light Duty Overhead Chain Specification:
Chain No. | Pitch | Pin Diameter | Pin Length | Other Dimensions | Ultimate Tensile Strength | Type | |||
P | D | L | A | B | C | E | Q | ||
S228 | 2" | 0.25" | 1.04" | 0.756" | 0.382" | 0.49" | 0.256" | 6000 lbs | S |
50.8mm | 6.3mm | 26.5mm | 19.2mm | 9.7mm | 12.4mm | 6.5mm | 27KN | ||
Custom dimensions are also available.
