Full Ball Bearing Overhead Trolley Wheel
Full Ball Bearing Overhead Trolley Wheel
Detail Information
Full Ball Bearing Overhead Trolley Wheel Description：
Camel Trolley Wheel is availabe in either full ball complement or retainer configurations.
The full ball complement trolley wheel contains the maximum number of recision ball bearings and is designed for heavey duty and/or high heat applications.
The retainer type trolley wheel has each precision ball bearing separated and equally spaced around the periphery of the bearing race by a two piece steel retainer cage. The retainer type wheel is designed primarily for transportation and parts delivery systems. It is generally not suited for heavy duty or high heat applications.

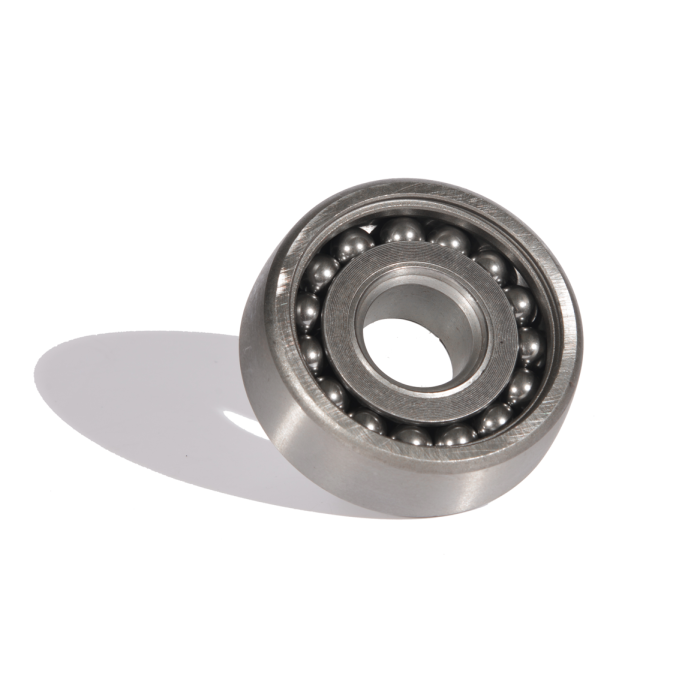

Item Picture:
Full Ball Bearing Overhead Trolley Wheel Schematic Diagram：
Full Ball Bearing Overhead Trolley Wheel Specification：
Wheel Number | Dimensions | Trolley Size | ||||
A | B | C | D | d | ||
φ120X25 | 1.42" | 1.30" | 0.85” | 4.72" | 0.98" | 6" |
36mm | 33mm | 21.5mm | 120mm | 25mm | ||
φ80X25 | 1.12" | 0.98" | 0.67" | 3.15" | 0.98" | 4" |
28.5mm | 25mm | 17mm | 80mm | 25mm | ||
φ82X25 | 1.12" | 0.98" | 0.67" | 3.23" | 0.98" | 4" |
28.5mm | 25mm | 17mm | 82mm | 25mm | ||
φ60X16 | 0.83" | 0.75" | 0.51" | 2.36" | 0.63" | 3" |
21mm | 19mm | 13mm | 60mm | 16mm | ||
