C131 Cast Combination Chain

C131 Cast Combination Chain

C131 Cast Combination Chain

CategoriesSugar Mill Chain
BrandCamelConvey Conveyor Chain Manufacturer
ModelC131 Chain
Material40Cr
Heat TreatmentThrough Hardening
Surface TreatmentNatural
SampleAvailable
Terms of PaymentL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
Download
Update TimeJan 18,2025
Detail Information

C131 Cast Combination Chain Description:

The C131 Cast Combination Chain is a 3.075" pitch cast combination chain, known for being one of the most common sizes in its class. It is widely used in grain elevators, lumber mills, sugar mills, flight conveyors, live-bottom trucks, and various other applications. The C131 chain is recognized for its excellent strength, with an average tensile rating of 32,400 LB.

Construction: The C131 chain is made with cast inner links (blocks) and mild steel pin links, offering durability to withstand gritty environments. It strikes a balance between affordability and strength, making it ideal for both abrasive and non-abrasive applications. Additionally, the C131 chain is bi-directional, as the links are symmetrical, allowing the chain to operate in either direction of travel.

The C131 Cast Combination Chain is commonly used for elevating and conveying a wide range of materials. It is an excellent choice for moderate-duty applications but is not recommended for use as a drive chain.

Applications: The combination of cast center links and steel sidebars in the C131 chain provides a rugged and reliable conveying medium. It is typically used in log conveyors, cane feeders in sugar mills, grit collectors, and moderate-duty bucket elevators.

As a leading conveyor chain manufacturer, we also supply a variety of C131 chain attachments, sprockets, and other accessories. For more information or to request a quote on the C131 Cast Combination Chain, please contact our customer service team—we are happy to assist you. Please specify the configuration you need (cottered or riveted) when making a request.

Whether you are in need of a sugar mill chain, agricultural conveyor chain, or a complete conveyor chain system, we are here to provide top-quality products and reliable solutions. Our team of experienced conveyor chain suppliers is ready to meet your needs!

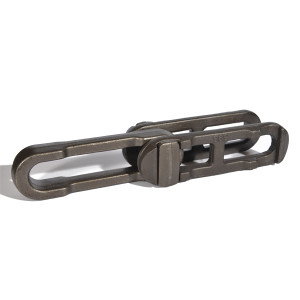

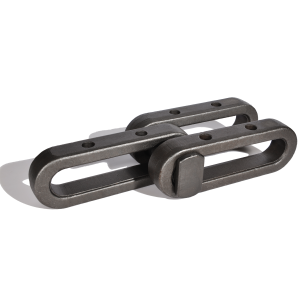

C131 Cast Combination Chain Pictures:

C131 Cast Chain
C131 Cast Chain

C131 Cast Combination Chain Schematic Diagram:

C131 Cast Chain

C131 Cast Combination Chain Specification:

Chain No.
Pitch
Dimensions
Average
U.T.S
P
A
B
C
D1
D2
T
C131
3.07"
1.50"
1.13"
2.05"
0.63"
1.25"
0.35"
24000 lbs
78.1mm
38.1mm
28.7mm
52mm
16mm
31.75mm
9mm
106KN
